Specifications
Components
-

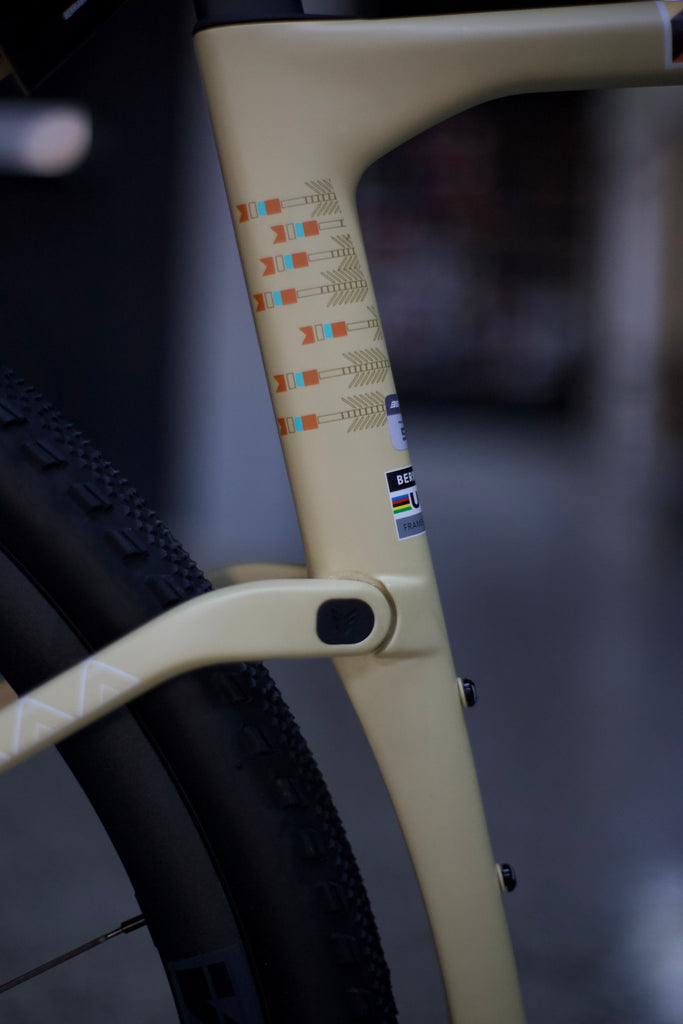

Frame

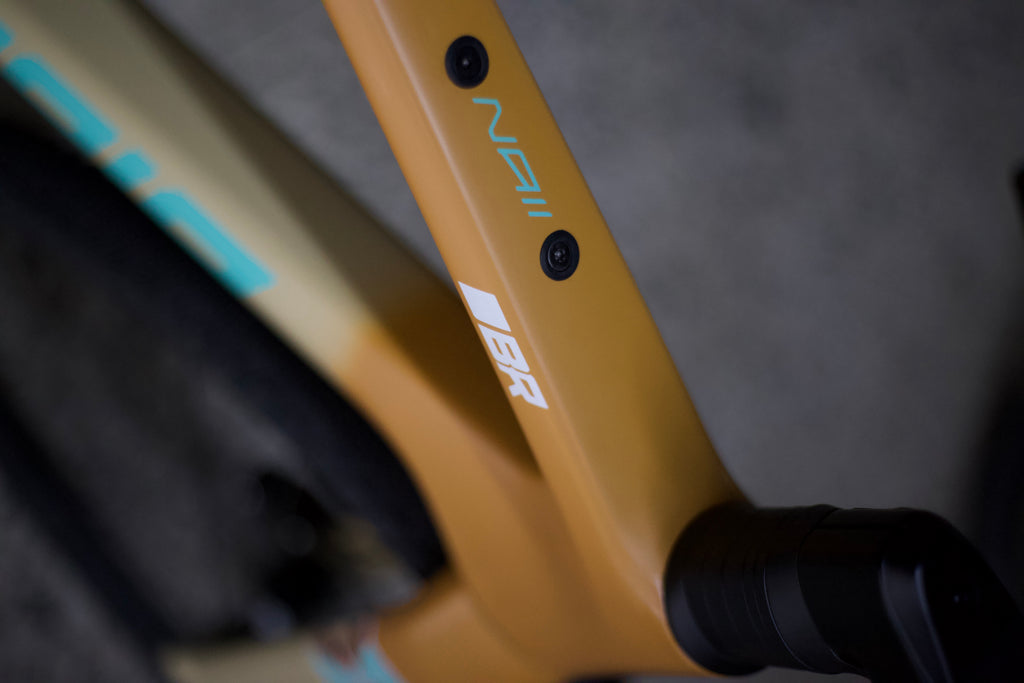

NAII Carbon, Geometry BGC with 28mm travel SOFTEX Suspension System, Full carbon HM3X, Triple monocoque, T47 bottom bracket, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2"- 1-1/2", Flat Mount 140mm, 700x50c maximum tyre, dedicated Seat post, Thru axle 12x142mm, UDH standard
-
Fork
Naii Fork, full carbon, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered , Flat Mount Standard max. 160mm disc , 700x50c maximum tyre, 48mm fork rake, 395mm axle to crown, Thru axle 12x100mm
-

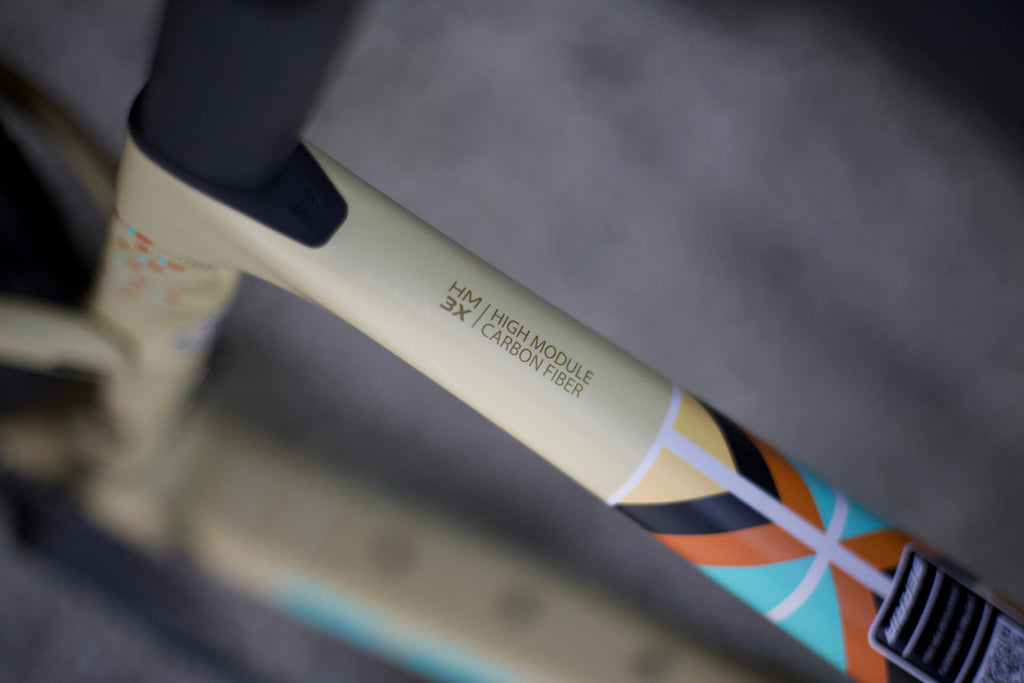

Material
Full carbon fiber HM3X
-

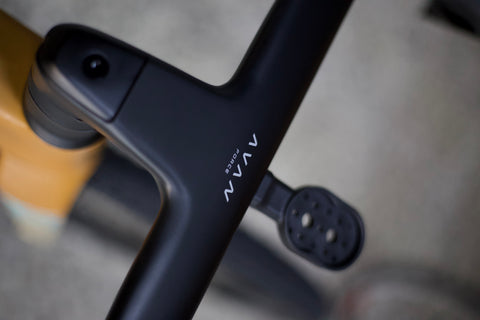

Handlebar

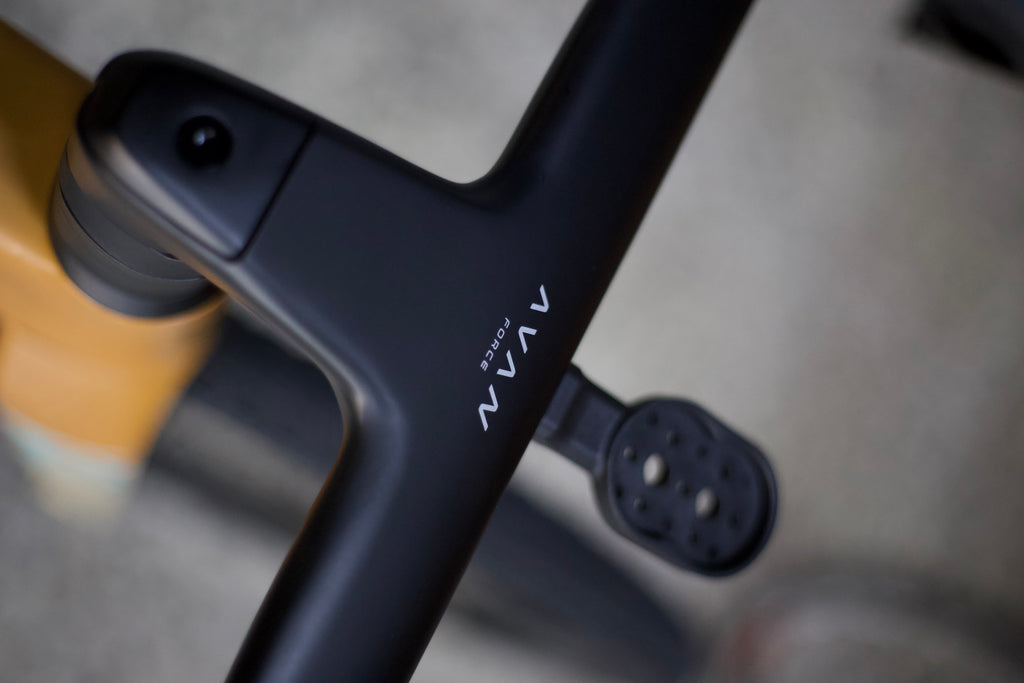

Avanforce Airone GR, lntegrated Gravel Carbon Handlebar, Full internal cable system ICS2, sizes: 405x80 - 425x90, 425x100, 425x110, 445x120
-

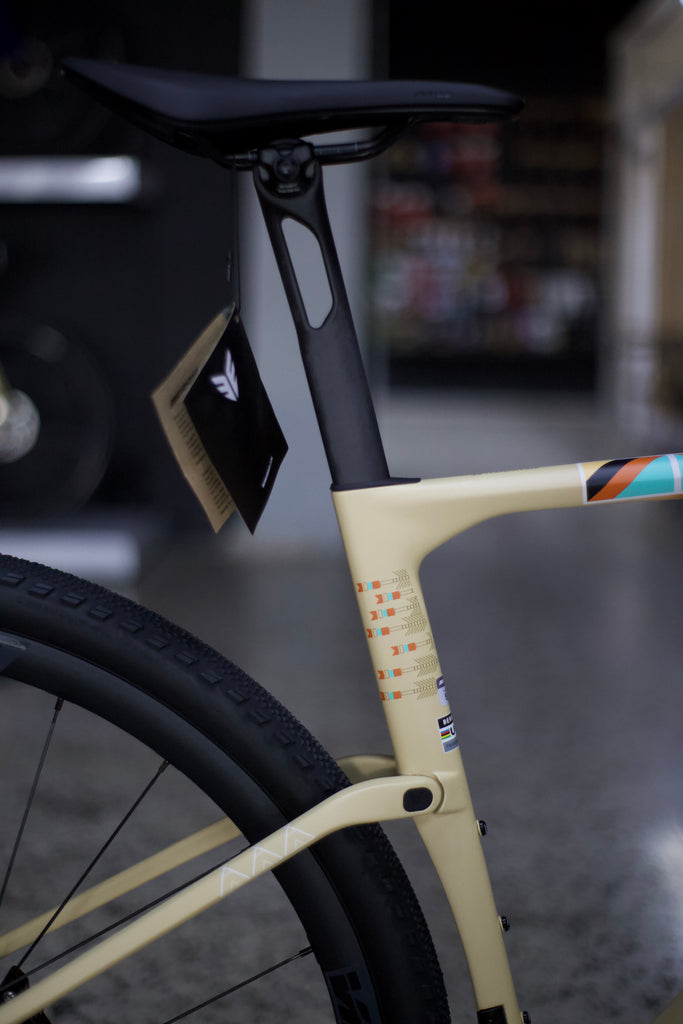

Seatpost
Avanforce Naii Tibia, Softex Seat post, UD Carbon, 0 offset, length: 300, 350mm
-
Saddle
Fizik Vento Argo X5, Steel rails 7x7mm, length 265 mm, width: 140 mm
-
Seat clamp
Universal Derailleur Hanger
-
Wheels
Vision Trimax 30 AGX, Aluminum rim, TLR, inner width 23mm, rim height 30mm, Center Lock
-
Control Changes
SRAM APEX AXS D1, Shift-Brake Electronic System
-
Gear Changes
SRAM APEX XPLR AXS D1, Electronic Shift System, 12s
-
Derailleur
SRAM APEX XPLR AXS D1, 12s, Electronic Shift System
-

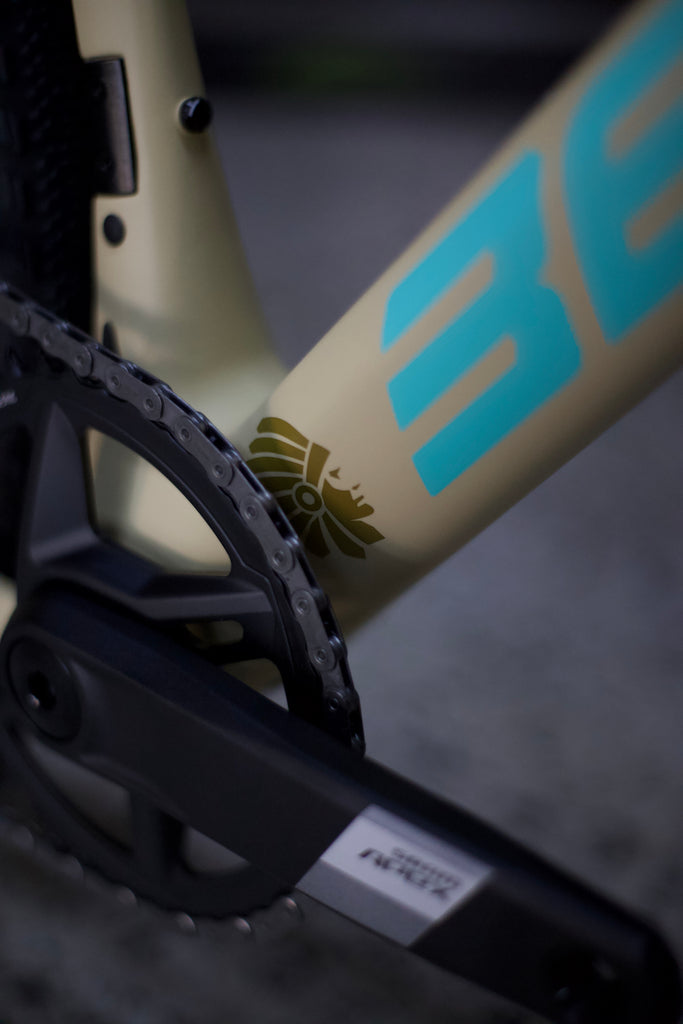

Cranks
SRAM APEX D1, DUB WIDE Crankset, 42T, 170-172,5-175mm
-
Chain
SRAM APEX D1, 118 Links
-
Cassette
CS XPLR PG1231, 11-44T
-
BB (Bottom Bracket)
SRAM DUB Wide T47
-
Brake
SRAM APEX AXS D1, Hydraulic Shift-Brake System
-
*We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.
