Components
-
Frame
Mako 4 EVO, XCO Geometry BGC, 113mm travel with integrated IN-LINK suspension, Full carbon HM2X, monocoque, bearings full ball ISB VMAX, BB92 bottom bracket, full internal cable system ICS2, MTB Acros Headset ZS56 with Blocklock 150º, Post Mount 160mm, 29x2.40" maximum tyre, BOOST Thru axle 12x148, UDH standard
-
Fork
Rock Shox SID Ultimate Flight Attendant, Damper FA Race Day, 15x110mm Maxle Stealth, Tapered steerer, DebonAir+, Rake 44mm, 35mm tapered wall aluminium, Glossy Black, 120mm travel
-
Material
Full carbon fiber HM2X
-
Handlebar
Avanforce Aguila, Integrated MTB Carbon Handlebar, width: 760mm, Backsweep: 7°, Upsweep: 5°, Rise: -12mm, Stem length: 60, 75, 95mm
-
Seatpost
TRANZX JD-YSPJL Aluminum 7075-T6, 0 offset, Ø31,6, 100mm travel
-
Saddle
Fizik Terra Ridon X5, Steel rails, length: 255mm, width: 145mm
-
Seat clamp
Universal Derailleur Hanger
-
Shock absorber
RockShox SIDLuxe Ultimate Flight Attendant, BERRIA MAKO 4 WC XCO Tunning, Damper RL3, Trunnion 165X45, 113mm travel
-
Wheels
DT Swiss X1900 Spline 29", 15x110, Boost 12x148mm, TLR, XD Rear Hub, Center Lock, internal width 25mm
-
Control Changes
EC AXS POD Right/Left Bridge W/MMX
-

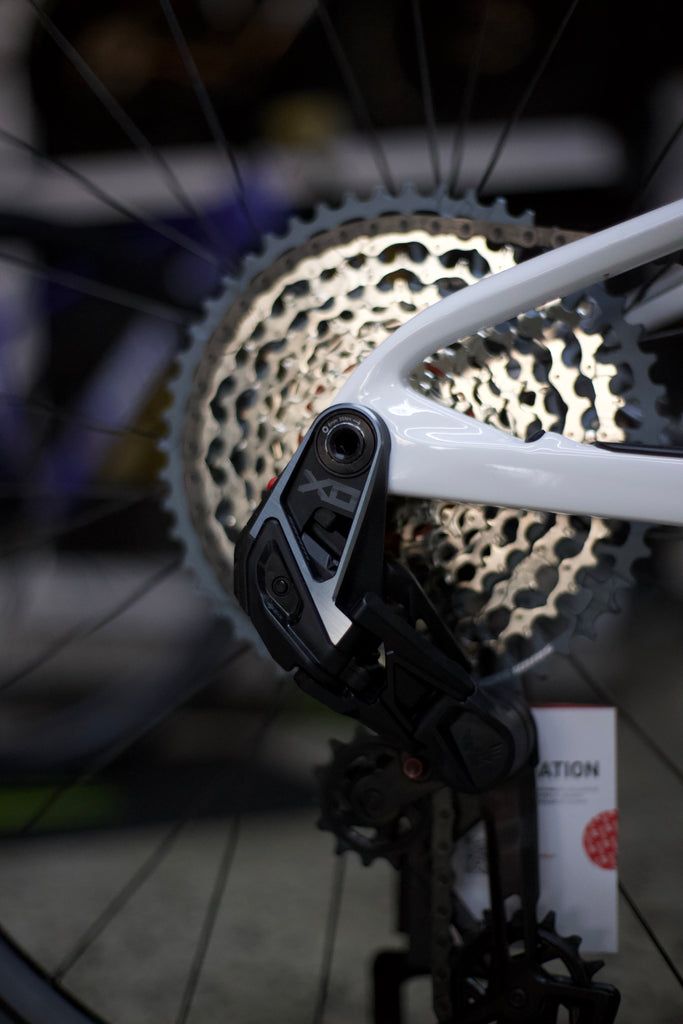

Gear Changes
SRAM X0 AXS Eagle T-TYPE, 12s
-

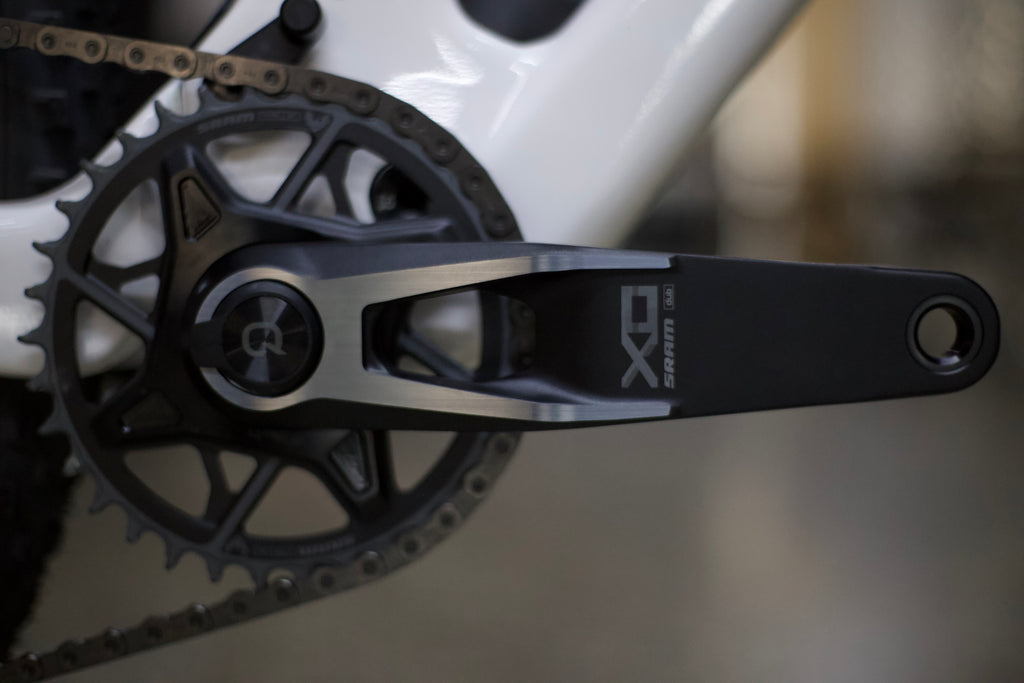

Cranks
SRAM X0 T-TYPE w/DUB Power Meter, 34T, 170-175mm
-
Chain
SRAM EAGLE 70 T-TYPE, 120 Links
-
Cassette
CS XS1275 Eagle, T-TYPE, 10-52T
-
BB (Bottom Bracket)
SRAM DUB Wide PF92 MTB
-
Brake
SRAM Level Bronze Stealth, 4 Piston
-
*We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.
