Specifications
Components
-
Frame

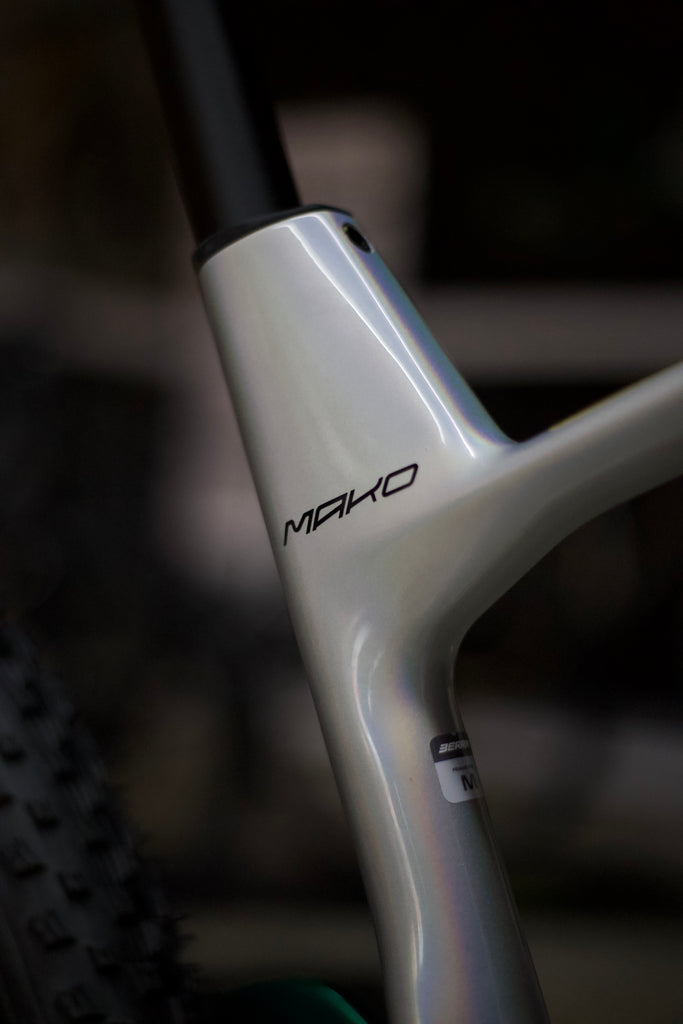

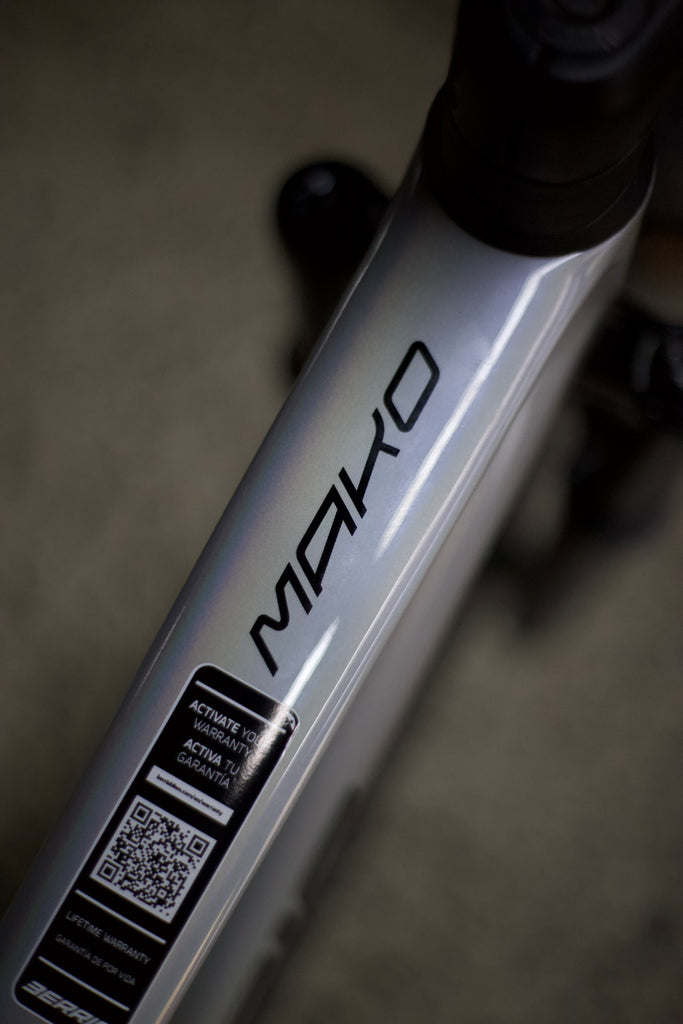

Mako 4, XCO Geometry BGC, 113mm travel with integrated IN-LINK suspension, Full carbon HM2X, monocoque, bearings full ball ISB VMAX, BB92 bottom bracket, full internal cable system ICS2, Integrated headset OH2S 1-1/2", Post Mount 160mm, 29x2.40" maximum tyre, BOOST Thru axle 12x148, UDH standard, weight: 1795gr (without hardware)
-
Fork
RockShox SID BSE, Damper Charger RL, Remote Lockout 3 Position, 15x110 Maxle Stealth, Tapered steerer, Spring Debon Air, Rake 44mm, 35mm tapered wall aluminum, Diffusion Black, 120mm travel, weight: 1646gr
-
Material
Full carbon fiber HM2X
-
Handlebar
Avanforce AF3, Aluminum 6061, Ø31,8mm, width 740mm, weight 330gr
-
Seatpost
Crank Brothers HIGHLINE 3 Dropper post, Aluminum 7075-T6, 0 offset, Ø31,6, 125mm travel, weight: 545gr
-
Saddle
Fizik Vento Argo X5, Steel rails 7x7mm, length 265 mm, width 140 mm, weight 240g
-
Seat clamp
Universal Derailleur Hanger
-
Shock absorber
RockShox SIDLuxe Ultimate, BERRIA MAKO 4 WC XCO Tunning, Debon Air, Remote Lockout 3 Position, Trunnion 165X45, 113mm travel, weight: 227gr
-
Wheels
DT Swiss X1900 Spline 29", 15x110, Boost 12x148mm, TLR, XDR Rear Hub, Center Lock, internal width: 25mm, weight: 1844gr
-
Coverings
Vittoria Barzo 29x2,25", Tubeless Ready, Graphene 2.0, 60 TPI, weight: 660gr
-
Control Changes
EC AXS POD Left Discrete Clamp
-
Gear Changes

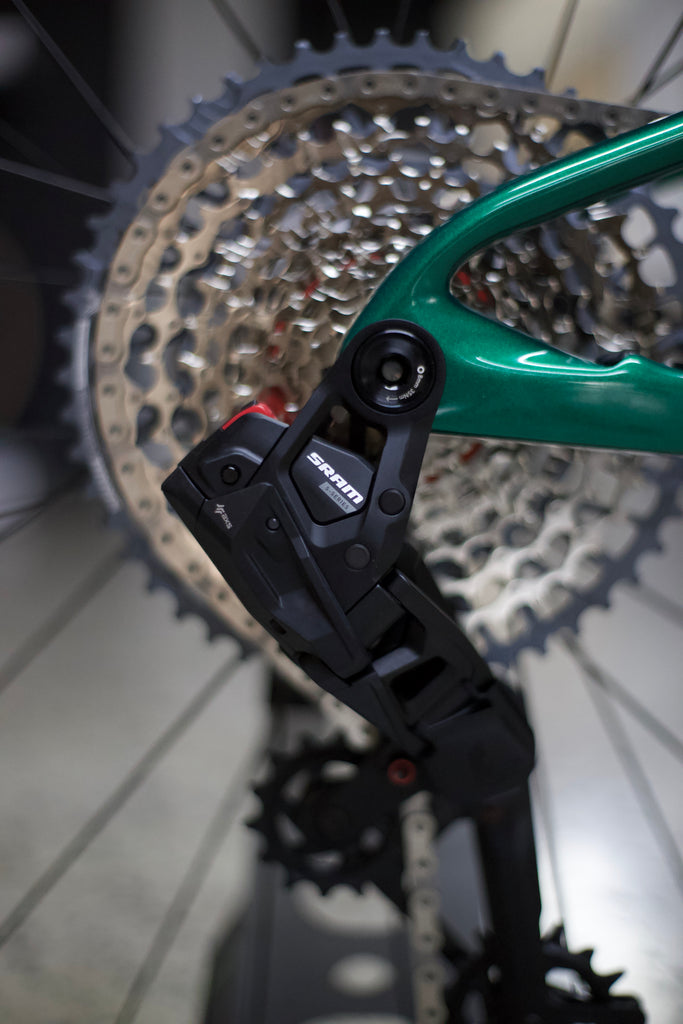

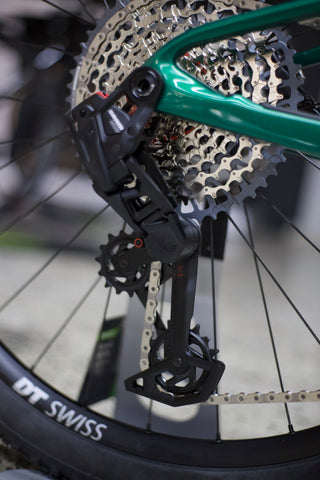

SRAM S1000 AXS Eagle T-TYPE, 12 Speed
-
Cranks

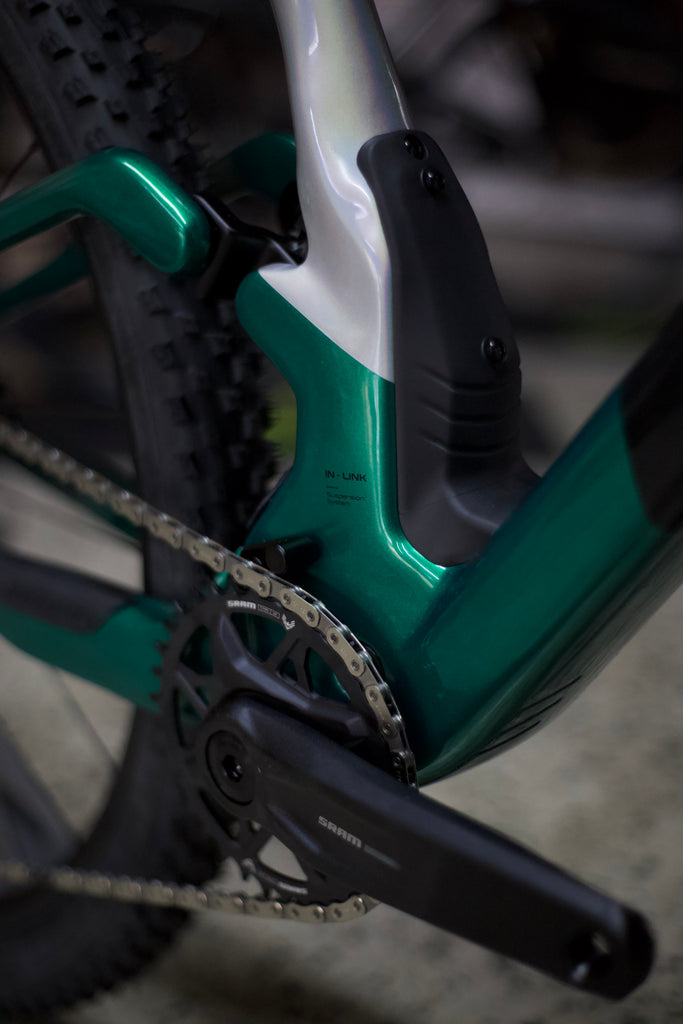

SRAM S1000 T-TYPE, 34T, QF: 174mm, 170-175mm, CL 55mm
-
Chain
SRAM GX T-TYPE Flattop, 118 links
-
Cassette
SRAM XS 1275 Eagle, T-TYPE, 10-52T
-
Bottom bracket
Bottom Bracket PF92 DUB WIDE MTB
-
Brake
Shimano Deore XT BL-M8100
