Specifications
Components
-

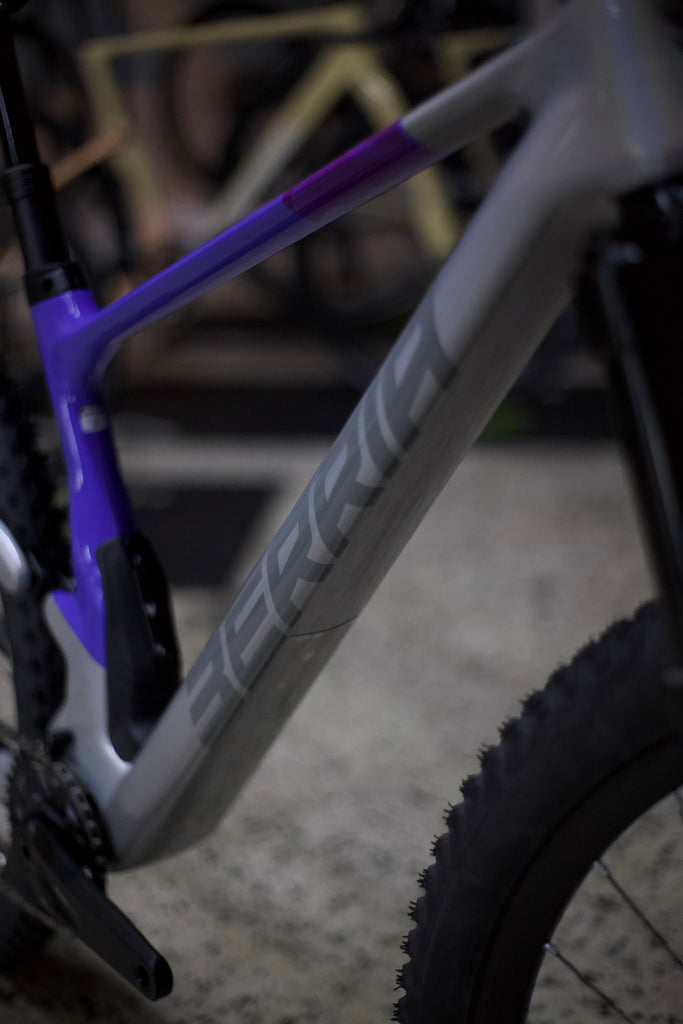

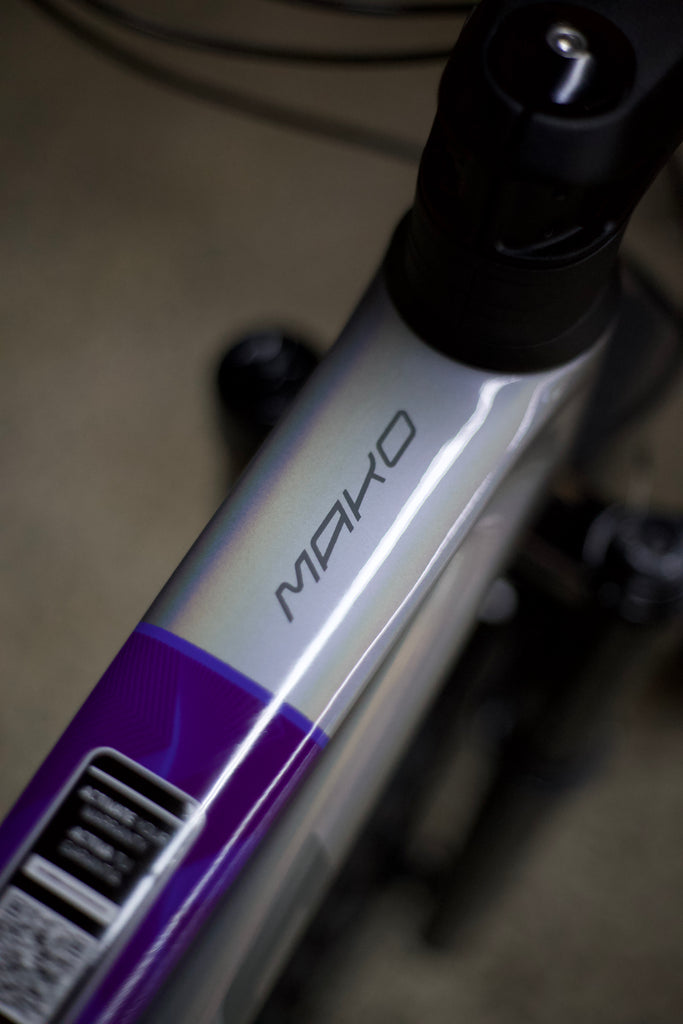

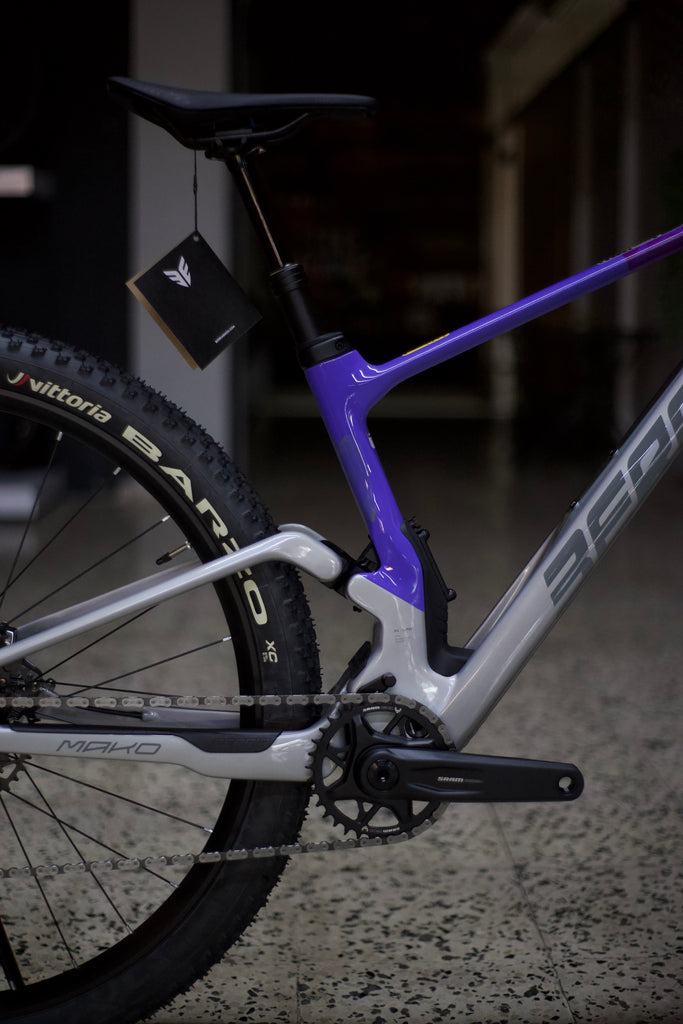

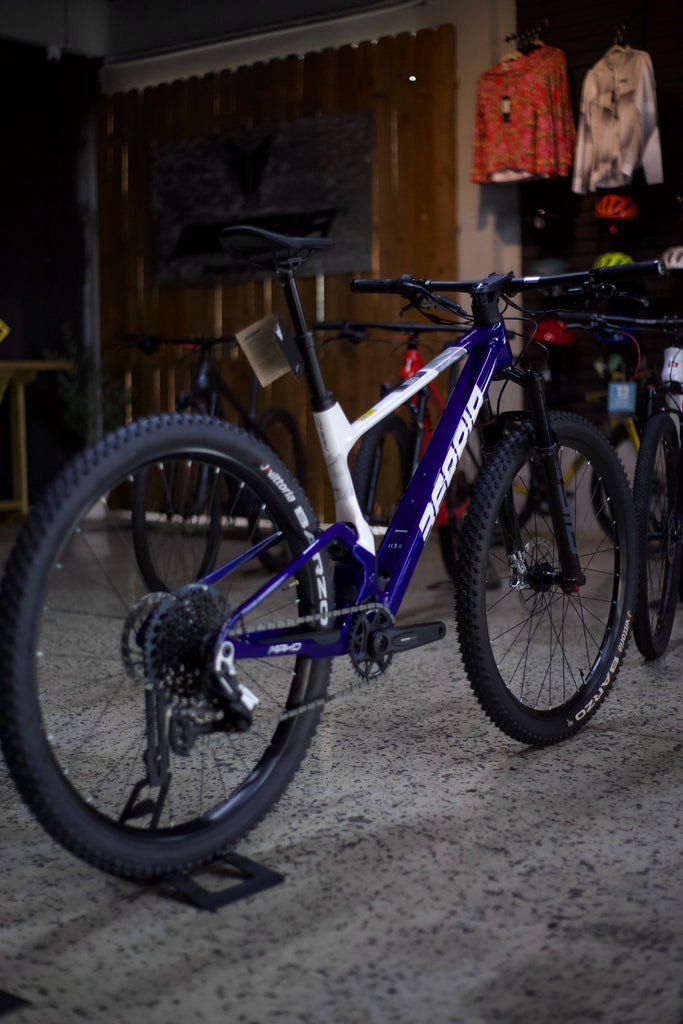

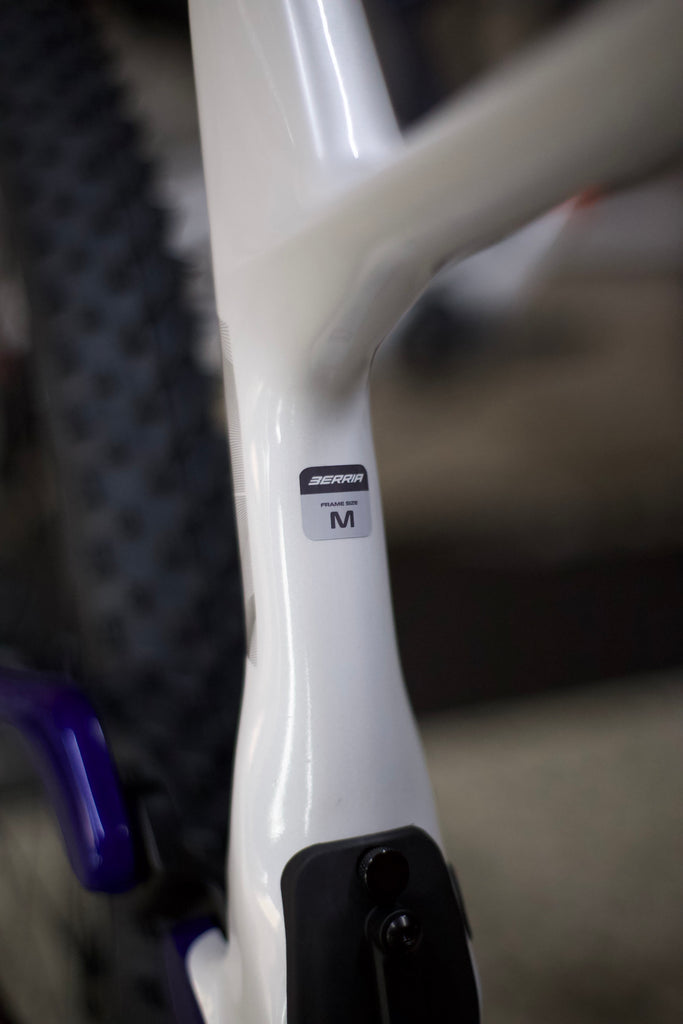

Frame

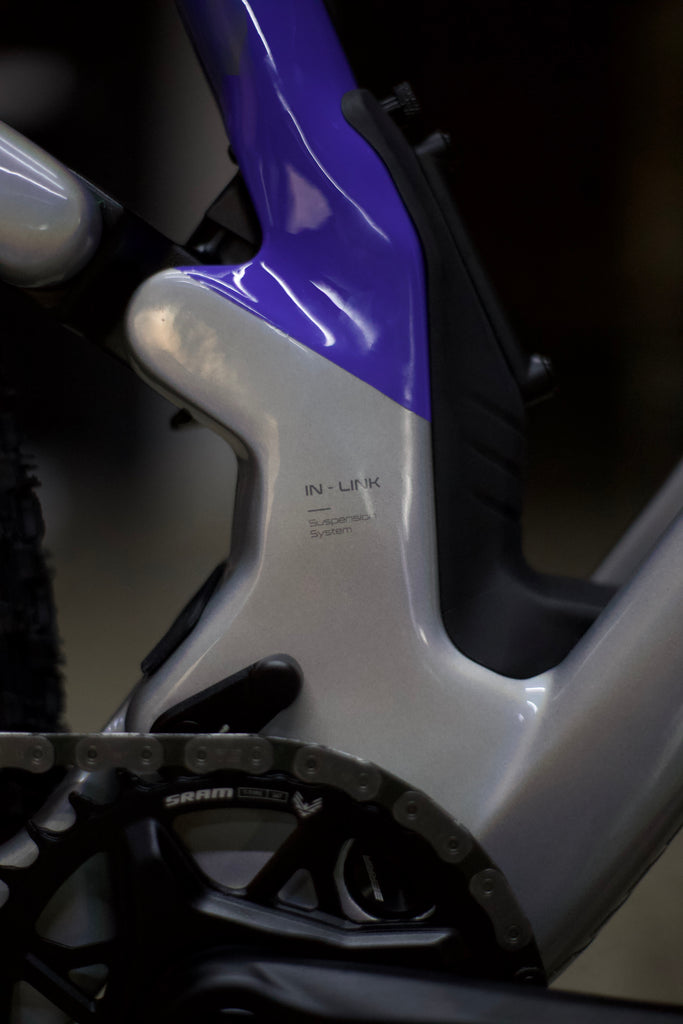

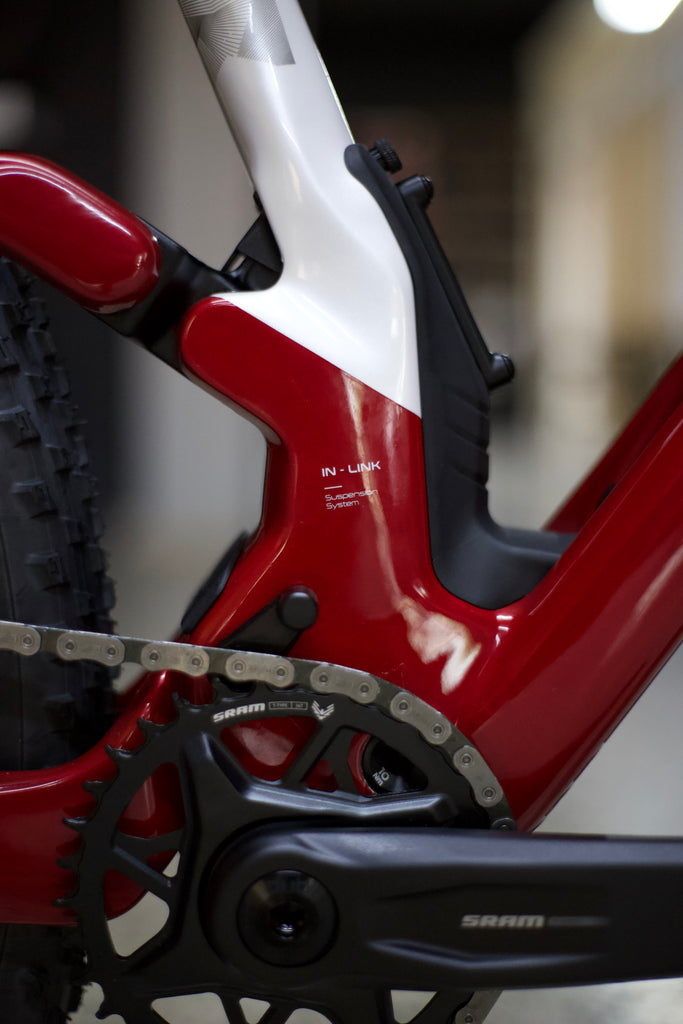

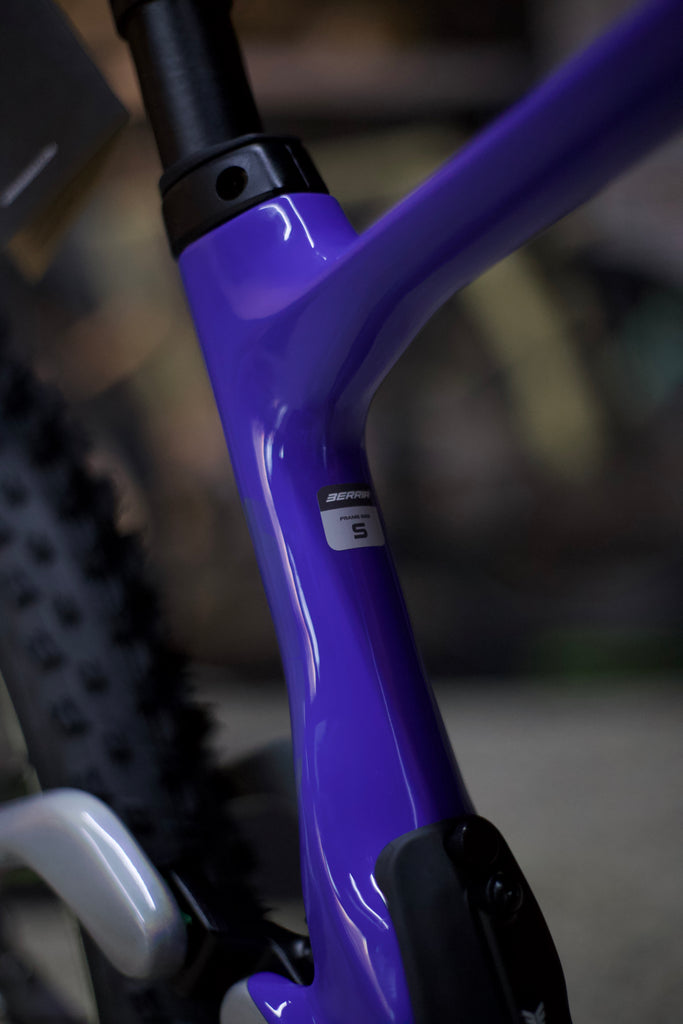

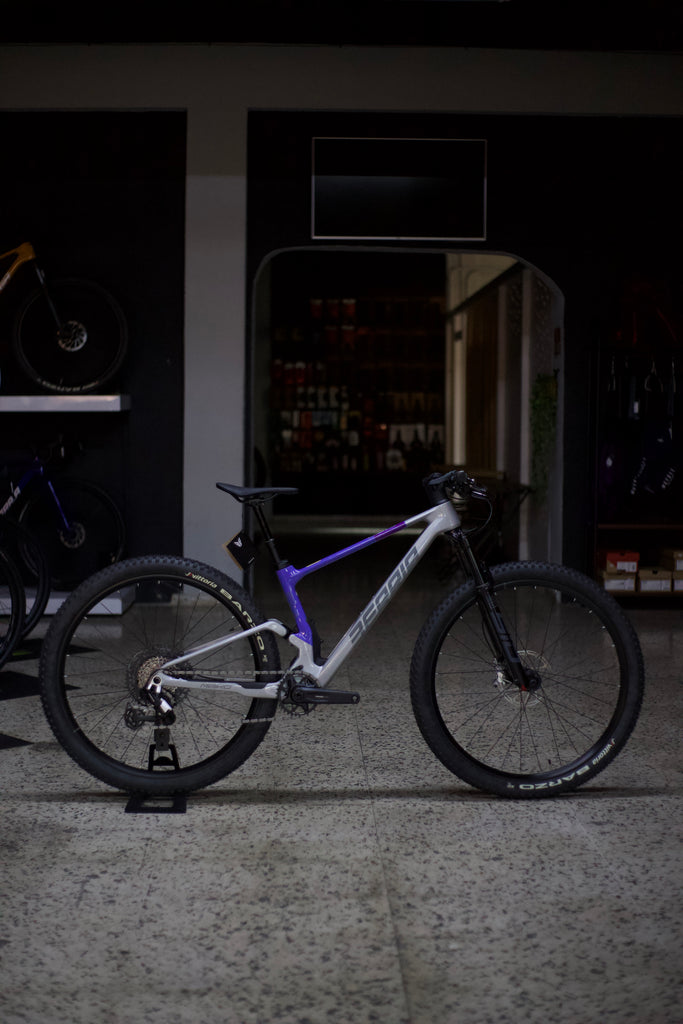

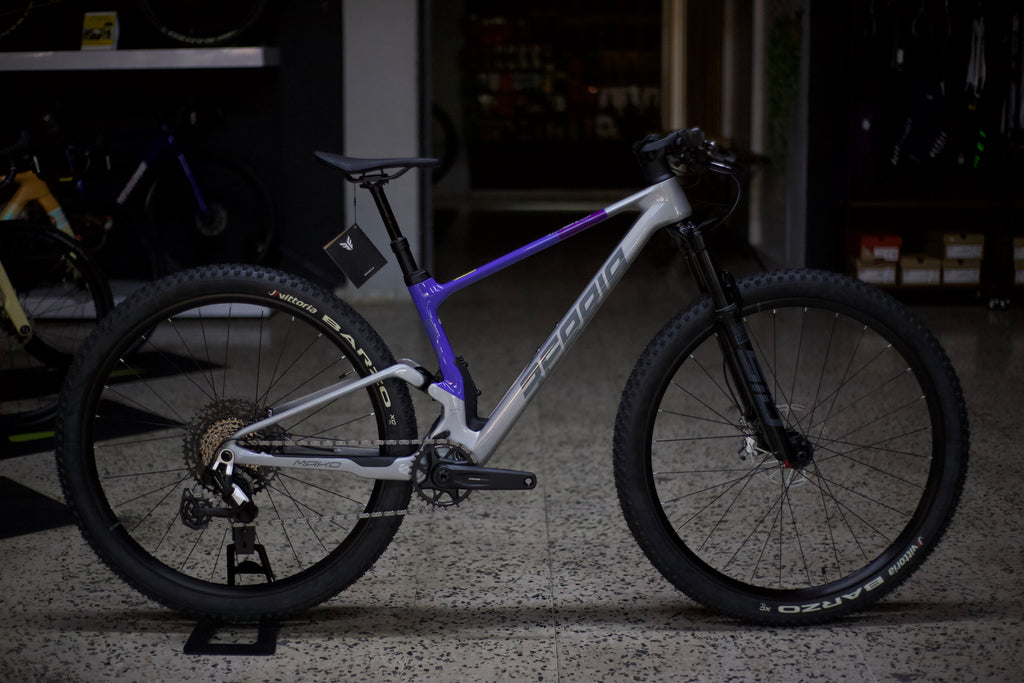

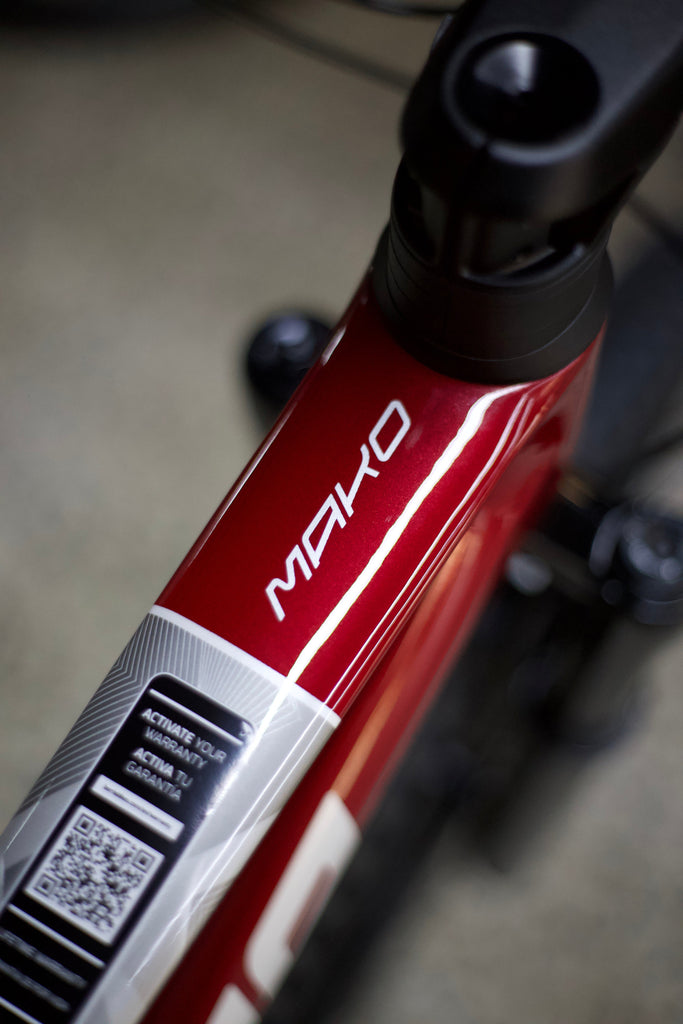

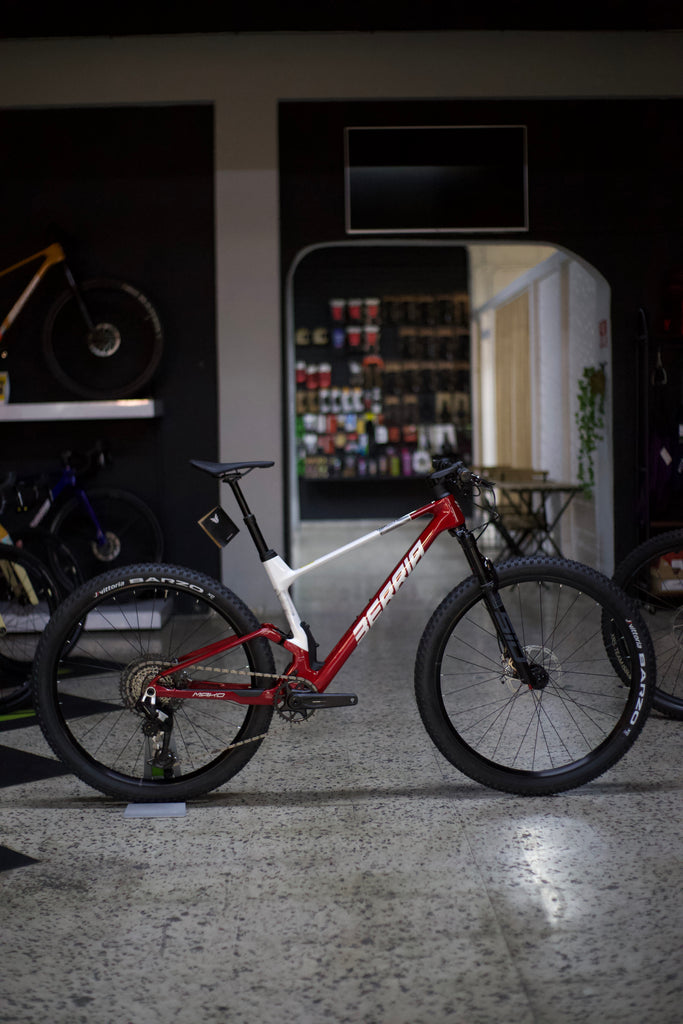

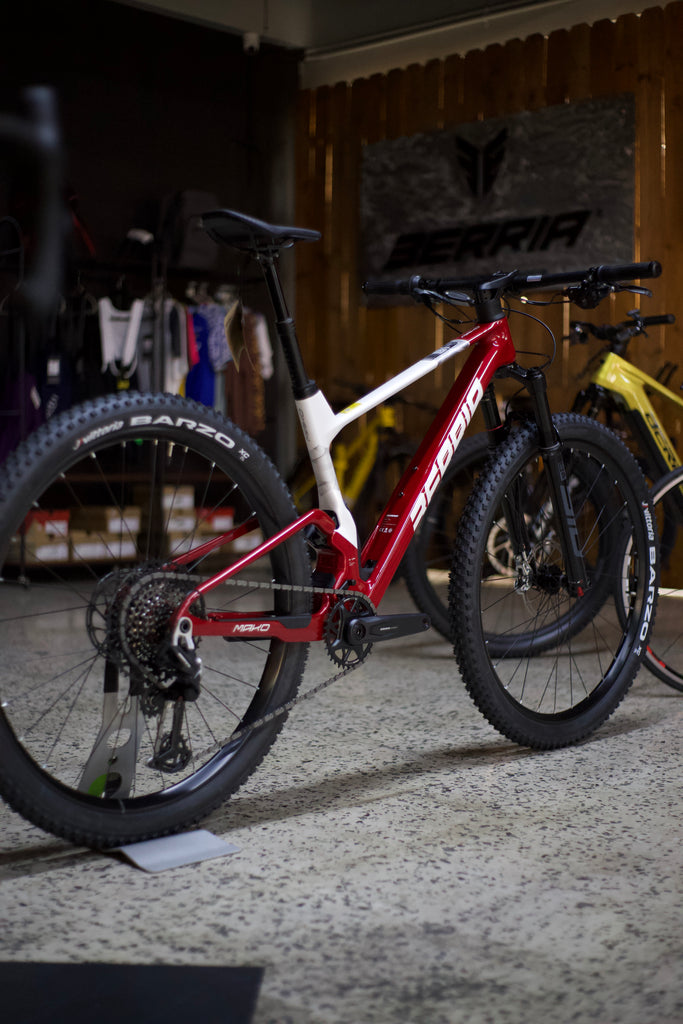

Mako 4 EVO, XCO Geometry BGC, 113mm travel with integrated IN-LINK suspension, Full carbon HM2X, monocoque, bearings full ball ISB VMAX, BB92 bottom bracket, full internal cable system ICS2, MTB Acros Headset ZS56 with Blocklock 150º, Post Mount 160mm, 29x2.40" maximum tyre, BOOST Thru axle 12x148, UDH standard
-
Fork
RockShox SID BSE, Damper Charger RL, Remote Lockout 3 Position, 15x110 Maxle Stealth, Tapered steerer, Spring Debon Air, Rake 44mm, 35mm tapered wall aluminum, Diffusion Black, 120mm travel
-
Material
Full carbon fiber HM2X
-
Handlebar
Avanforce AF3, Aluminum 6061, Ø31,8mm, width: 740mm
-
Seatpost
TRANZX JD-YSPJL Aluminum 7075-T6, 0 offset, Ø31,6, 100mm travel
-
Saddle
Fizik Terra Ridon X5, Steel rails, length: 255mm, width: 145mm
-
Seat clamp
Universal Derailleur Hanger
-
Shock absorber
RockShox SIDLuxe Ultimate, BERRIA MAKO 4 WC XCO Tunning, Debon Air, Remote Lockout 3 Position, Trunnion 165X45, 113mm travel
-
Wheels
Mavic Crossride 29", 15x110, Boost 12x148mm, TLR, HG11 Rear Hub, Center Lock, internal width 30mm
-
Control Changes
SRAM Eagle 90, 1 Click shifter, 12s
-

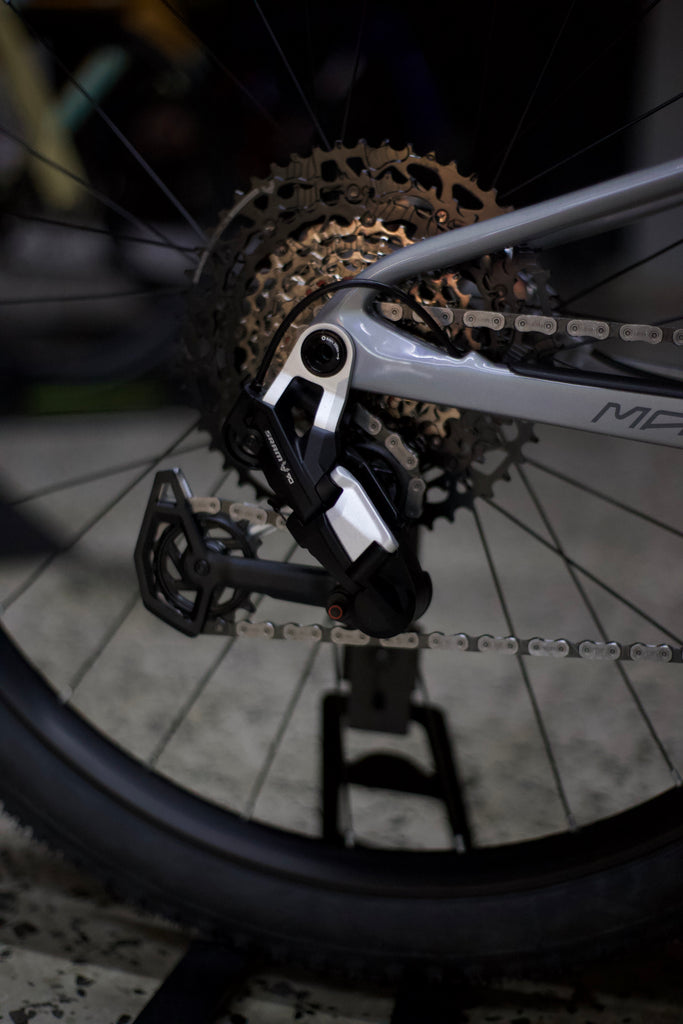

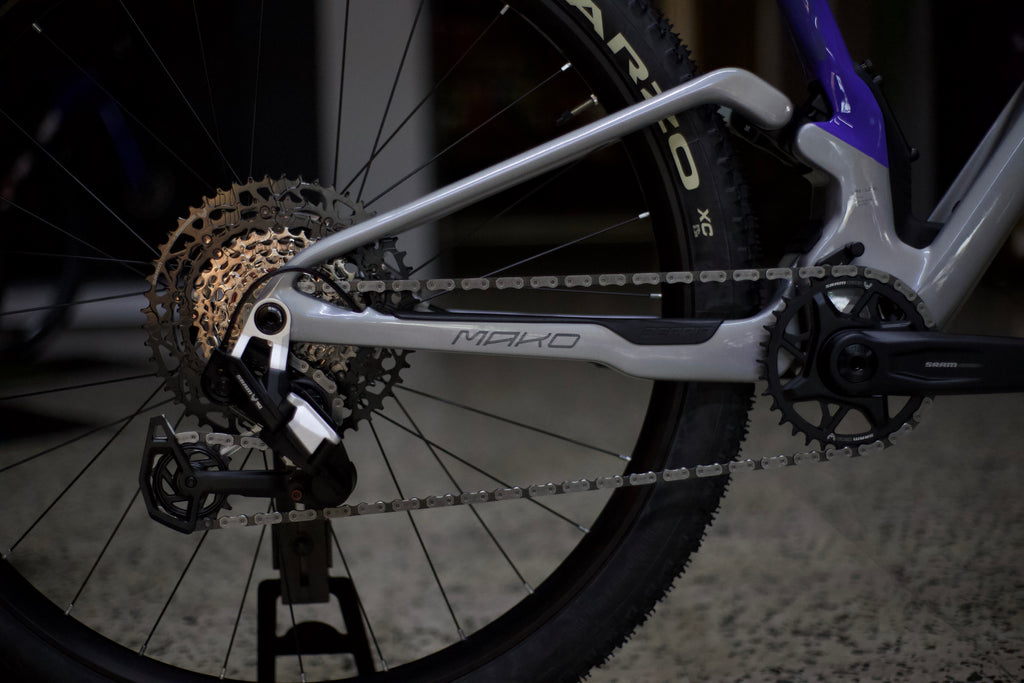

Gear Changes

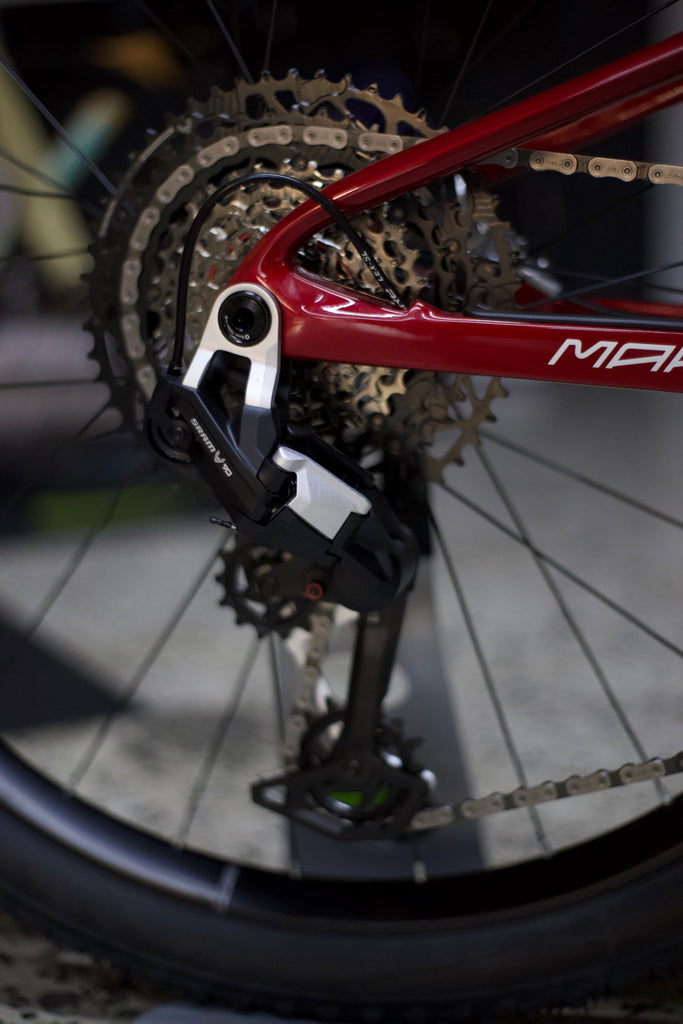

SRAM Eagle 90, T-TYPE, 12s
-
Cranks
SRAM S1000 T-TYPE, 34T, 170-175mm
-
Chain
SRAM EAGLE 70 T-TYPE, 120 Links
-
Cassette
CS XS1270 Eagle, T-TYPE, 10-52T
-
BB (Bottom Bracket)
SRAM DUB Wide PF92 MTB
-

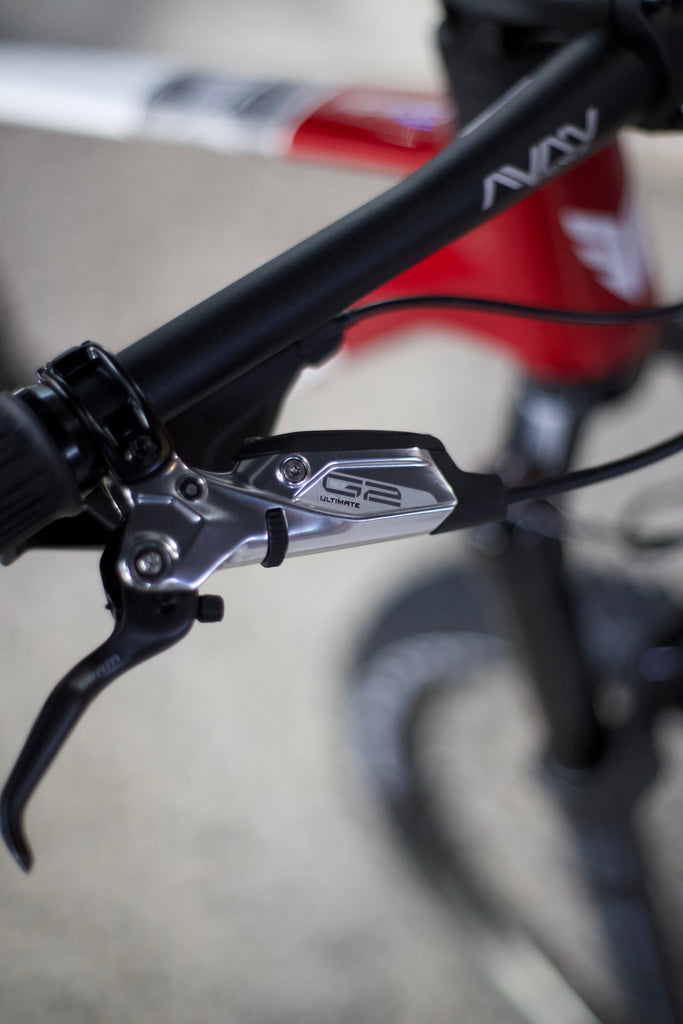

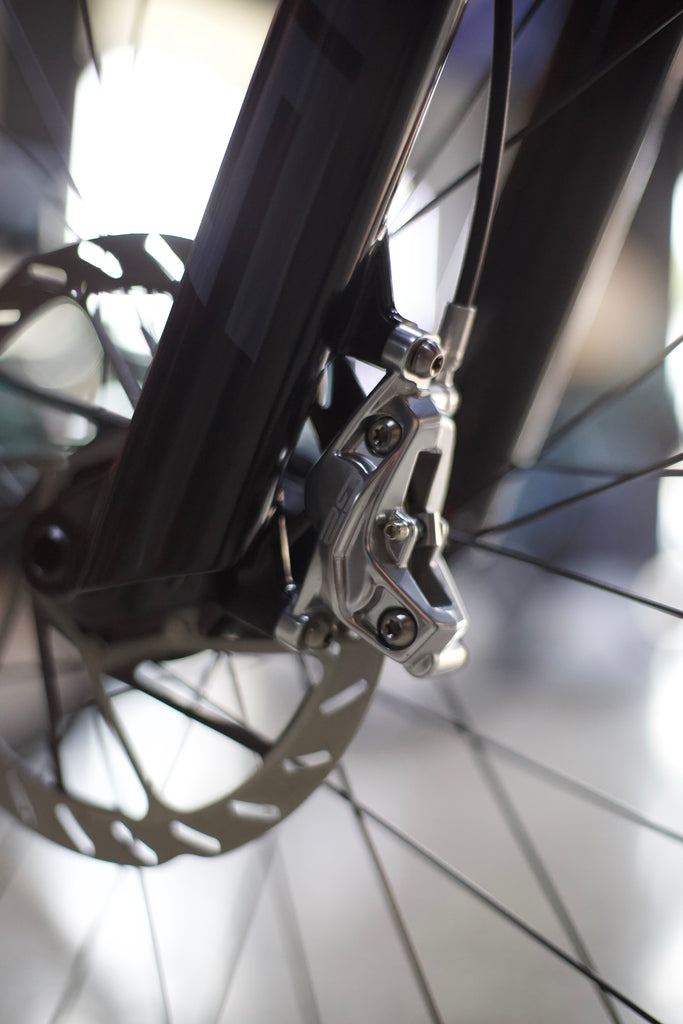

Brake

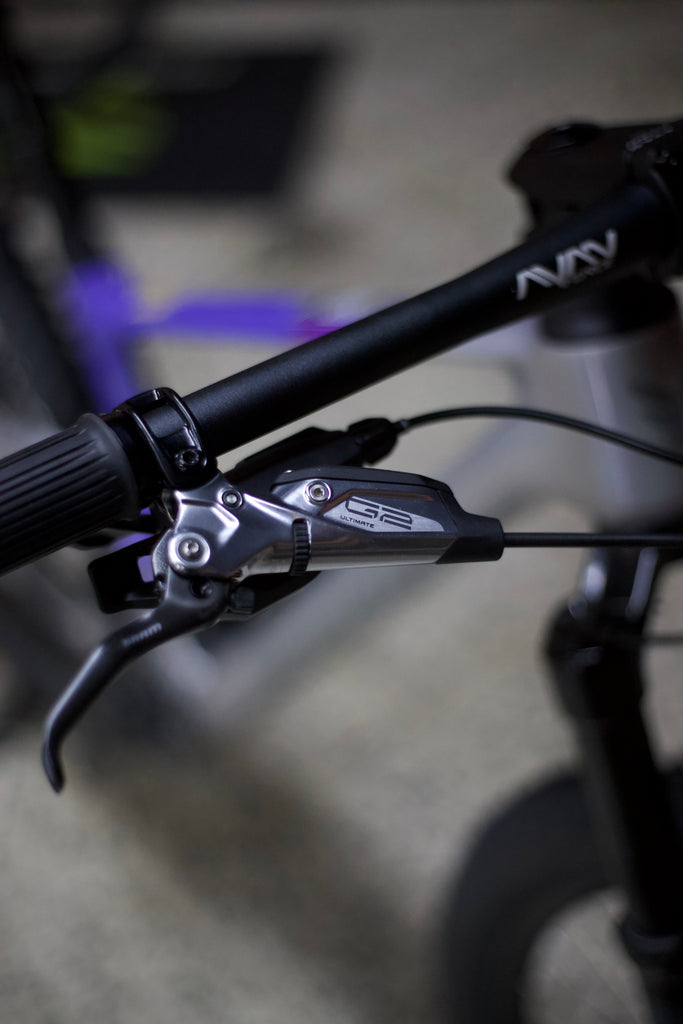

SRAM G2 R, 4 Piston
-
*We reserve the right to modify the information and components of the products that appear on this website without prior notice, including equipment, specifications, models, colors and materials.
